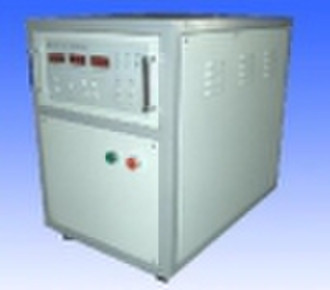

Low Ripple Microwave Power Source

GMPG -2010C 1kW/2450MHz Low Ripple Microwave Power Source Application and Features: Designed specifically for microwave plasma, ECR ion source and other high-tech scientific research and industrial application. The magnetron with magnet and sub-coil, water cooling and advanced feedback control offers adjustable output power from 100w to 1000w with low ripple and precisely regulation by manual or computer controlling conveniently and reliably. The calibrated digital display for both forward and reflected microwave power. Remote power head and control included for customer convenience. With easy button control and perfect interlock system, it offers optimum operating and reliability. Easily connect to computer with friendly interface and convenient programming. SpecificationFrequency 2450 ± 50MHzRated Power Output 100 1000W with digital display Output ripple ±1% of output for ±8% change in input line voltage Regulation( line and load) ±0.5% of output for ±8% change in line voltageAC Power Line 208 or 380VAC, 50/60Hz, 3φOutput Wave guide BJ-26 (WR340), FD-26 ( CPR340 F)Cooling Water, 0.5gpm for Remote Head and internal fan for Power Box.Interface RS-232C.size of Remote Head 12.6(L)x 8.7(W)x 9.4(H) ( inch )Weight of Remote Head 15 IbMicrowave leakage International standard.Size of Power Box 27 (L) x 17 (W) x 23 (H) ( inch )Weight 90 Ib As low ripple programmable control microwave power sources, we can offer a series of power from 1kW, 1.5kW, 2kW, 3kW, 5kW up to 10kW/2450MHz which the specification list follows: Specification Type:GMG-2010GMG-2020GMG-2030GMG-2050GMG-2100Frequency2450MHz±15MHzPower Output0.1-1kw0.2-2kw0.3-3kw0.5-5kw1-10kwStability±1%at the specific power levelPower Consumption2kw3kw4.5kw8kw15kwPower Supply308VAC±5%/50MHz 3 phase 4 linesCooling Water3 L/min3 L/min4 L/min4 L/min<6L>/minWave guideWR-340 FD-340 FlangeWR-430 FD-430 FlangeMagnetron HeadOutsideInsideLeakage< 5mW/cm2 ( IEC Standard )
