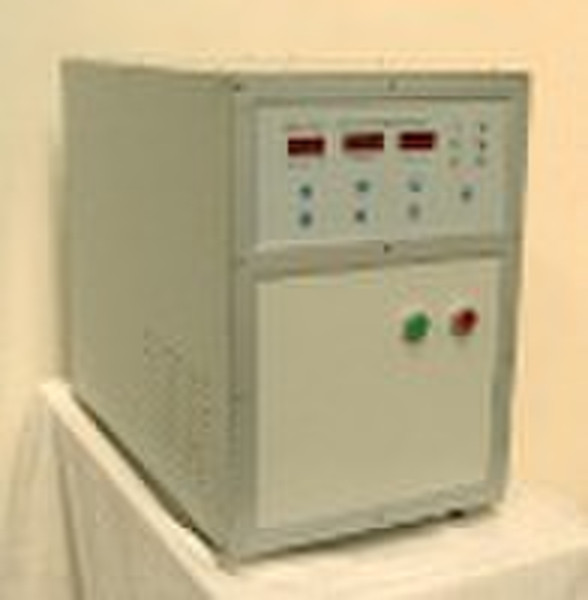

2450MHz Programmable Control Microwave Power Sourc

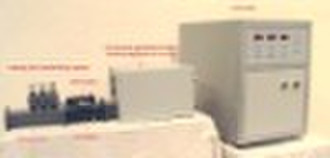

GMG 1kW-10kW/2450MHzSeries Programmable Control Microwave Power Source Application and Features: -Specifically designed for microwave plasma, ECRsource and other high-tech scientific research and industrial application. -The magnetron with magnet and sub-coil, water cooling and advanced feedback control offers adjustable output power from 150w to 1500w with low ripple and precisely regulation by programmable controlling conveniently and reliably. -The calibrated digital display for output power, reflected power and setting time. -Remote power head and control included for customer convenience. -With easy button control and perfect interlock system, it offers optimum operating and reliability. As low ripple programmable control microwave power sources, we can offer a series of power from 1.0kW, 1.5kW, 2kW, 3kW, 5kW and 10kW/2450MHz which the specification list shown as follows: (waveguide transmitting system belong to options ) Specification Type:GMG-2010GMG-2015GMG-2030GMG-2050GMG-2100Frequency2450MHz ± 50MHzPower Output0.11kw0.11.5kw0.33kw0.55kw0.510kwStability±1%at the specific power levelPowerConsumption2kw3kw5kw8kw15kwPower Supply380VAC ± 3%/50MHz 3 phase 4 linesCooling Water3 L/min4 L/min4 L/min5 L/min<8L>/minWaveguideWR-340 FD-340 Flange WR-430 FD-430FlangeMagnetronHeadOutsideInsideLeakage< 5mW/cm2 ( IEC Standard ) The Data for 1.5kW/2450MHz Source: Specification Operation frequency 2450MHz ± 50MHzRated power output 150 1500W with digital display Output stability ±1% at the full output Output ripple < 2%AC power supply 380VAC± 5%, 50Hz, 3kWOutput waveguide BJ-26 (WR340), FD-26 ( CPR340 F)Cooling water 4L/minSize of controlled box 750 (L)x 500 (W)x 650(H) (mm)Microwave leakage International standard (IEC).Size of magnetron head 350 (L) x 340 (W) x 280 (H) (mm )Weight 70 kg
